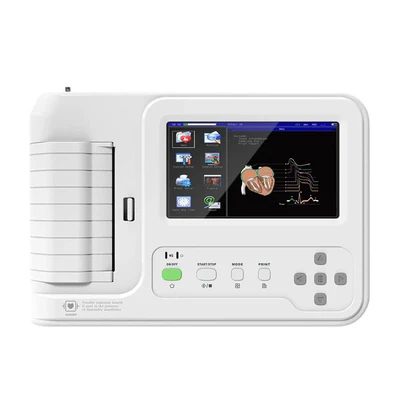

Contec 6 Channel ECG Machine - 600G

New

4.5

12456 Ratings

₹36,000₹68,00047% off

Specifications

Channel : 6 Channel
Input mode : Floating and Defibrillation protection
Paper size: 80mm(W)×20m(L)
CMRR : >60dB, >100dB(add filter)
Time constant: ≥ 3.2s
Frequency response : 0.05Hz ~ 150Hz(-3dB~+0.4dB)
Patient leak current: <10µA
Calibration voltage : 1mV
Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
Noise level: <15µVp-p
Input circuit current: ≤50nA
Input impedance: ≥50MΩ
Sampling accuracy: 12-bit
Safety classification : Class I, type CF and defibrillation-proof applied part
Recording mode : Thermal printing system
Auto record : Set record according to auto-record format and mode, automatically switching leads, measuring and analyzing.
Rhythm record : Set record according to rhythm record format and mode, automatically measuring and analyzing.
Manual record : Set record according to record format, manually switching leads.
Measurement parameters : HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Sampling frequency : 1000Hz
EMG interference filter : 25Hz/35Hz (-3dB)
Power frequency filter : AC 50Hz/60Hz(-20dB)
Paper speed: Auto: 5, 6.25, 10, 12.5, 25, 50, 100mm/s, ±5% / Rhythm: 5, 6.25, 10, 12.5, 25, 50, 100mm/s, ±5% / Manual: 5, 6.25, 10, 12.5, 25, 50, 100mm/s, ±5%

in the box

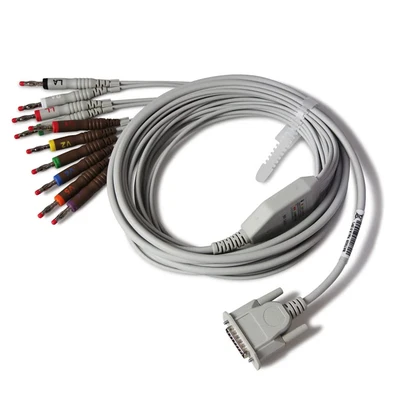

ECG cable - 1 set
Limb electrode clamp - 1 set
Chest electrodes - 1 set

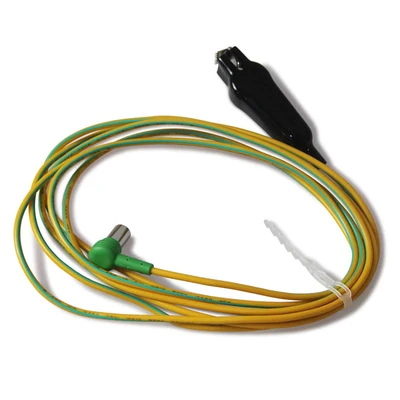

Ground wire
Power connection
Paper roll
USB connection and PC software

Key Features :

7" TFT, colour LCD touch screen
12 leads simultaneous display
Digital isolation technology and signal processing solution, digital filter
Patient management, name, age and id, detail analysis report
Built-in lithium rechargeable battery
Thermal printing system provides more than 10 printing modes
Can print 90 minutes and print out 150 ECG continually
ECG-Sync software, USB connection to PC and built-in memory can store more than 1000 cases
Auto-measurement, auto-analysis, and auto-interpretation

Warranty

1 Year

Seller

AA MEDIE QUIPLearn More

Product Description

The Contec 600G is a 6-channel electrocardiograph (ECG) machine designed to capture and analyze full 12-lead ECG data, widely used in hospitals, clinics, diagnostic centers, and mobile health units. It combines digital ECG acquisition, real-time waveform display, automatic measurement & interpretati...
