Mindray TV50 Transport Ventilator

New

Specifications

Patient Types : Adult, Pediatric, Infant (varied clinical ranges)
Display : 7″ capacitive TFT touchscreen (800×480)
Peak Flow : ≥ 210 L/min
FiO₂ Range : 21 %–100 %
Battery Type : Built-in lithium-ion, hot-swappable
Battery Run Time : ≥ 10 hours (real-time display)
Weight : ~4.5 kg
Environmental : -20 °C to +50 °C; altitude compensation ~7600 m; IP34
Standards Compliance : RTCA/DO-160G, EN 13718-1, EN 1789, ISO 80601-2-84
Ventilation Modes : Invasive, Non-invasive, O₂ therapy, AMV, CPRV
Monitoring : CO₂ (mainstream) with adapters

highlights

✔️ Turbine-driven independence — no compressed air needed.
✔️ Lightweight and compact (~4.5 kg) — easy to carry and mount.
✔️ Adaptive and emergency ventilation modes (AMV, CPRV) for clinical flexibility.
✔️ Long battery life (≥10 h) with real-time display and swappable battery design.
✔️ Rugged build and environmental resilience (wide temp, drop resistance, IP34).
✔️ CO₂ monitoring and telemedicine-ready data connectivity.

in the box

Mindray TV50 ventilator unit
AC power cable
Rechargeable battery (built-in; may include one or more packs)
User manual / quick start guide

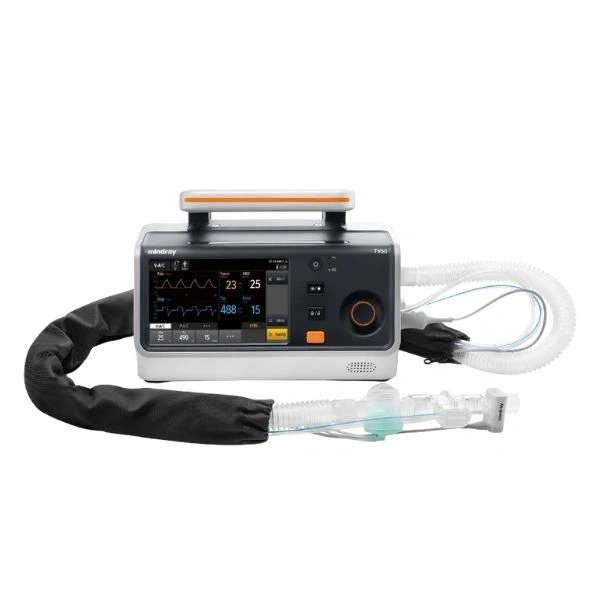

Breathing circuit and connectors (may vary by configuration)
Oxygen supply hose / adapters
Mounting accessories (carry handle, optional trolley base or gas cylinder carrier — depending on package)

Use Cases :

Intra-hospital patient transport
Pre-hospital transport
Emergency response situations.
Patients requiring mechanical ventilation during transfers in challenging environments.

Key Features :

High-Performance Turbine: Built-in turbine drive for enhanced independence and portability, offering a peak flow ≥210L/min for effective NIV support.
Precise FiO2 Adjustment: Fine-tune oxygen concentration from 21% to 100%.
Ultra-Compact & Lightweight: Weighs only 4.5kg, designed for easy one-handed carrying and improved transport efficiency.
Versatile Portability: Features a universal mount handle and optional fixed base, mobile trolley, or gas cylinder carrier for various transport needs.
Environmental Resilience: Working Temperature: -20°C to 50°C | Altitude Compensation: Up to 7600m | Dustproof & Waterproof: IP34 grade | Drop Protection: 6 sides, 75cm | Force Resistance: 20G
Intuitive 7-inch HD Touch Screen: High-definition capacitive touch display with a user interface similar to bedside ventilators and auto-brightness adjustment.
Real-Time Data Communication: Rich data interfaces for seamless, real-time transmission of ventilation data and patient vital signs.
Non-Consuming O2 Sensor: Long-lasting with zero maintenance and real-time O2 consumption monitoring.
Special Functions & Procedures: Sigh, O₂ ↑, Suction, Manual breath, Inspiratory hold, Screen lock, Oxygen consumption calculation, Storage mode.
CO2 Monitoring Support: Supports Mindray mainstream CO2 monitoring with reusable and disposable adapters.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Mindray TV50 Transport Ventilator is a turbine-driven portable ventilator that delivers reliable mechanical ventilation across a wide range of clinical scenarios. It combines a compact and lightweight design with advanced features typically found in larger ICU ventilators, enabling high-quality ...
