Contec TLC6000 12-Lead 48-Hour ECG Holter Monitor

New

4.5

12456 Ratings

₹41,500₹65,00036% off

Specifications

Lead Mode : Standard 12-lead ECG
Recording Duration : Up to 48 hours continuous
Sampling Accuracy : 12-bit
Sensitivity : 10 mm/mV ±5 %
Noise Level : ≤30 µV p-p
CMRR : ≥60 dB
Frequency Response : 0.5 Hz–55 Hz (−3 dB)
Minimum Measurable Signal : 50 µV p-p
Display : OLED or similar status screen (varies by unit)
Dimensions : ~80.5 × 59.5 × 22 mm
Weight : ~61.5 g (without batteries)
Power Supply : AAA batteries (typically 2)
Storage Media : TF/SD card support

highlights

12-Lead Synchronous Recording: High fidelity cardiac data collection for accurate diagnosis.
Long-Duration Data Capture: Records ECG continuously up to 48 hours, enabling detection of episodic cardiac events.
Portable & Comfortable: Ultra-lightweight design suitable for ambulatory patients
Easy Integration with PC Software: Allows clinicians to analyze, edit, and print detailed reports.

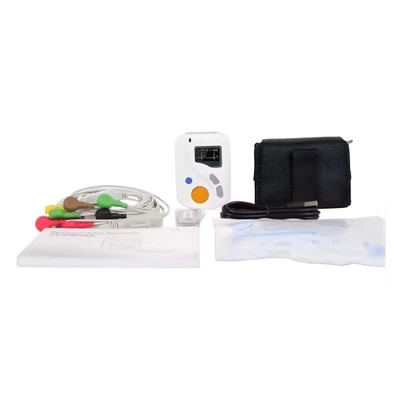

in the box

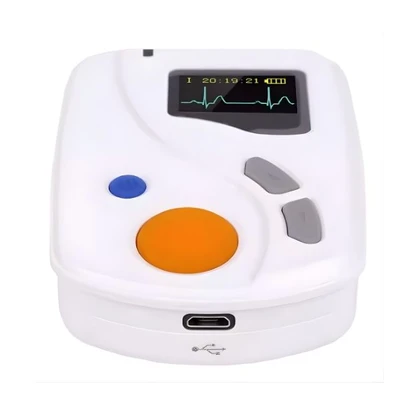

TLC6000 Holter ECG Recorder Unit — Main holter device

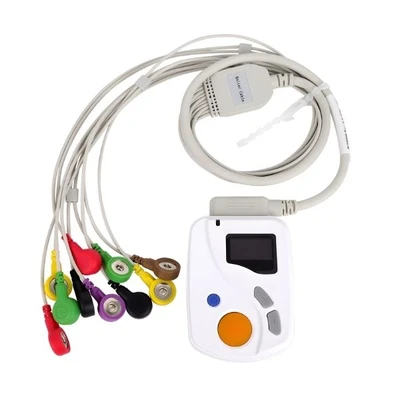

12-Lead ECG Cable Set — For electrode connection
ECG Electrodes — Pack of disposable electrodes
TF/SD Memory Card — For data storage (may vary by seller)
USB Cable — For PC data transfer
Analysis Software — PC software for review and reporting
Carrying Pouch / Bag — For storage and portability
User Manual & Warranty Card — Instructions and warranty info

Use Cases :

Ambulatory ECG Monitoring: Detect intermittent arrhythmias that might be missed in resting ECGs.
Pacemaker Follow-Up: Evaluate pacemaker function over daily life activities.
Post-MI Risk Assessment: Heart rate turbulence and QT dispersion analysis help assess risk after myocardial infarction.
Clinical Diagnostics in Cardiology: Detailed ECG analysis for arrhythmia, conduction disorders, and ischemia.
Research & Clinical Studies: Long-term ECG data collection for studies and trials.

Key Features :

Standard 12-Lead ECG Recording: Simultaneous synchronous recording of all 12 leads for comprehensive cardiac assessment.
Extended Monitoring (24–48 Hours): Capable of continuous ECG capture for up to 48 hours for ambulatory use.
Advanced Arrhythmia Detection: Includes templates for atrial/ventricular premature beats, long pauses, atrial fibrillation, and more.
Heart Rate Variability Analysis: Provides short- and long-term variability metrics and predictive modules like HRT (heart rate turbulence).
Pacemaker Rhythm Analysis: Detects and characterizes pacemaker signals (AAI, VVI, DDD).
Portable & Lightweight: Compact recorder (~61.5 g) that is comfortable for ambulatory patients.
Easy PC Integration: Data can be transferred to PC via USB or TF/SD card for review and comprehensive reporting.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

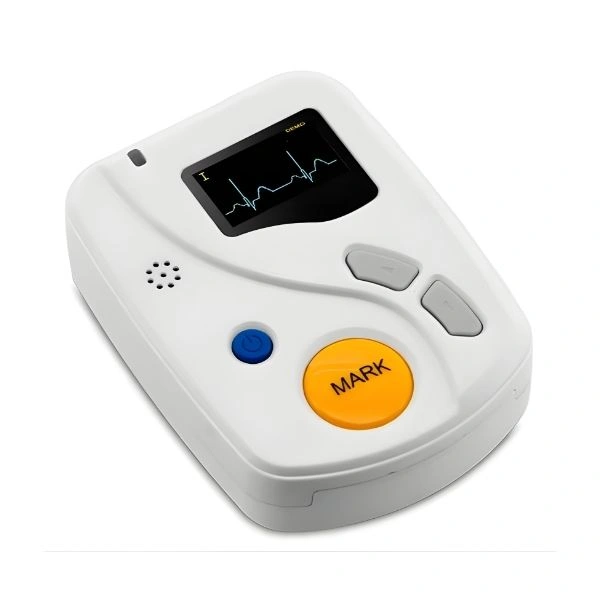

The Contec TLC6000 ECG Holter System is a 12-lead ambulatory cardiac monitoring device designed to continuously record ECG waveforms over extended periods (up to 48 hours). It captures all standard ECG leads simultaneously and stores high-resolution cardiac data that can be transferred to PC softwar...
