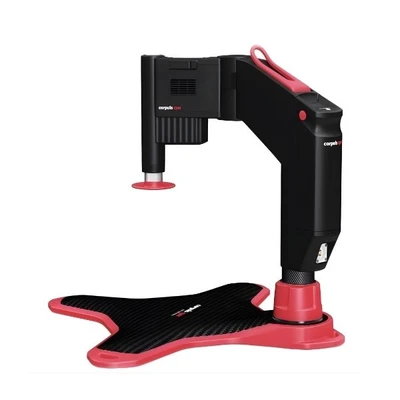

Corpuls CPR Fully Automatic Thorax Compression Machine

New

4.5

12456 Ratings

Specifications

Device Type : Fully automatic mechanical thorax compression machine
Display : 2.4″ LED color display, illuminated
Compression Rate : 80–120 compressions/min (adjustable)
Compression Depth : 2–6 cm (adjustable)
Therapy Modes : Continuous, 30:2, 15:2
Patient Thorax Height Range : 14–34 cm
Power Source : Electric; Lithium-polymer (LiPo) battery
Battery Runtime : ~90 min typical
Charging Time : ~105 min (0–80%) / ~30 min (80–100%)
Connectivity : Bluetooth, NFC
Protection Rating : IP54 (dust & splash protected)
Operating Temp Range : -20 °C to +45 °C
Weight (Main Unit) : ~5.5 kg
Typical Operating Noise : ~70 dB
Backboards Included : Options: Recboard (~2.2 kg), Quadboard (~1.7 kg), Scoopboard (~1.7 kg)

highlights

Unrestricted thorax access during CPR with single-arm design — ideal where chest access is critical (e.g., intubation)
Radiolucent backboards allow imaging with device in place
Adjustable to patient size & procedure needs
Bluetooth & NFC data capabilities for integrated monitoring systems such as corpuls3
Reusable, disinfectable components to lower long-term cost

in the box

Main Corpuls CPR thorax compression unit (arm with stamp & battery)
Radiolucent board (e.g., Recboard, Quadboard, or Scoopboard)
Spare battery
Mains adapter / charging unit
User manual & documentation

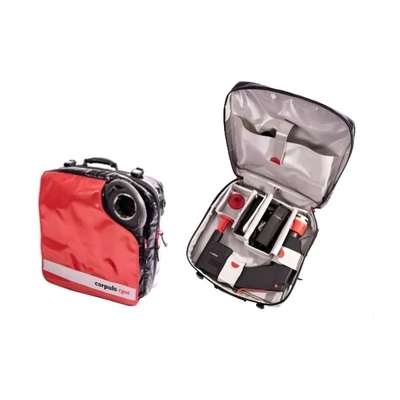

Carrying bag/backpack for transport/storage

Use Cases :

Emergency medical services (ambulances, rapid response units)
Air and helicopter rescue missions
In-hospital resuscitation and cardiac catheterization labs (radiolucent boards)
Transport scenarios (ground or air) where consistent compressions must continue despite motion.
High-stress or low-staff settings where responders benefit from reduced fatigue.

Key Features :

Fully automatic electromechanical chest compressions with adjustable compression depth and frequency.
Supports multiple therapy modes including continuous and cycle modes (e.g., 30:2, 15:2) in line with current resuscitation guidelines.
2.4″ LED color display with clear, intuitive controls and softkeys.
Audio-visual alarms and real-time feedback during therapy.
Bluetooth & NFC connectivity for data transfer and pairing with compatible modules like the corpuls3 monitor.
Adjustable for a wide range of thorax heights (approx. 14–34 cm), with no patient weight restrictions.
Radiolucent backboards enable X-ray and imaging procedures without interrupting CPR.
Electric with rechargeable lithium-polymer battery — typical runtime ~90 min.
IP54 protection against dust and splash, suitable for varied conditions.
Disinfectable compression stamps in multiple sizes reduce consumables cost.
Quick switch from manual to mechanical CPR with minimal interruption.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Corpuls CPR is a fully automatic mechanical thorax compression device designed to deliver consistent, high-quality chest compressions during cardiopulmonary resuscitation. It’s engineered for both pre-hospital emergency use (EMS, ambulance, air rescue) and in-hospital resuscitation — including i...
