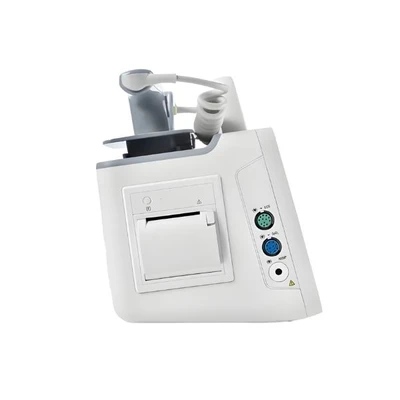

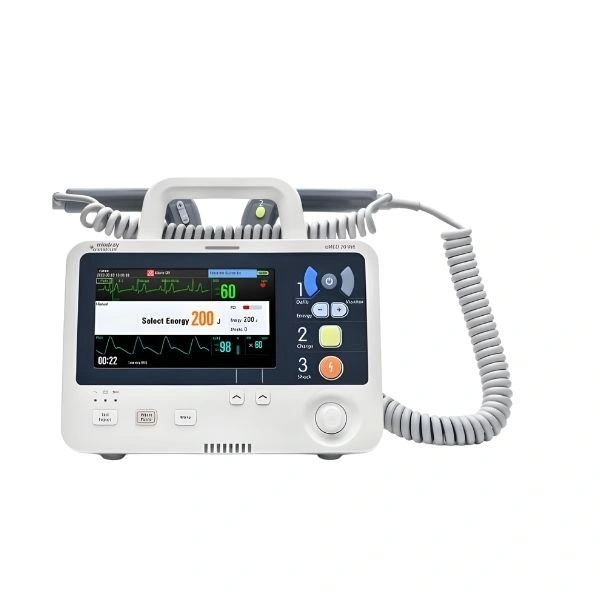

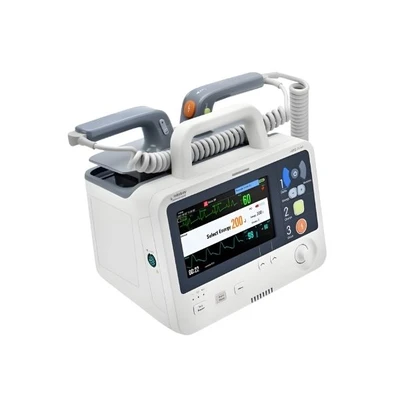

Mindray uMED 20 Defibrillator

New

4.5

12456 Ratings

Specifications

Model : Mindray uMED 20 Defibrillator / Monitor
Device Type : Manual defibrillator + AED + ECG monitor
Display : 7" TFT Color LCD, 800 × 480 pixels
Defibrillation : Technology Biphasic truncated exponential with impedance compensation
Energy Output Range : 1–360 J external defibrillation
Charge Time : < 3 s to 200 J; < 7 s to 360 J (with fully charged battery)
Power On Time : < 2 s (fast startup mode)
ECG Monitoring : 3-lead ECG, optional 5-lead
Heart Rate Display : Adult: 15–300 bpm; Pediatric: 15–350 bpm
Alarms & Arrhythmia Detection : Yes
Battery : 5600 mAh rechargeable Li-ion; up to ~6 h monitoring or ~300 × 200 J discharges
Power Supply : AC 100–240 V, 50/60 Hz; Battery support
Weight : ≤ 5.3 kg (with battery & paddles)
Dimensions (W×D×H) : 275 × 205 × 190 mm
Environmental Protection : IP44 water/dust resistant; 0–45 °C operational
Data Storage : Up to 100 patients; 500 events/patient; ECG waveform storage
Synchronized Cardioversion : Yes

highlights

Simple but Professional Design: Combines manual defibrillation capability with AED ease of use.
Fast & Effective Shock Delivery: QShock™ and biphasic technology enable quick energy delivery and ECG recovery.
Comprehensive Auto-Testing: Routine maintenance is simplified with smart diagnostics.
Compact & Portable: Lightweight design (< 5.3 kg) with sturdy casing for use across departments.
Clear Visual Feedback: Patient contact indicators and guided interface enhance usability and safety.

in the box

1 × Mindray uMED 20 Defibrillator/Monitor Unit
1 × Rechargeable Lithium-ion Battery Pack
1 × AC Power Cord / Adapter
1 × External Defibrillation Paddles
1 × ECG Cable with Electrodes
1 × User Manual / Quick Reference Guide

Use Cases :

Emergency Department (ED) — Rapid response and defibrillation during cardiac arrests.
Intensive Care Units (ICU) — Monitoring and rhythm analysis with simultaneous defibrillation capability.
Ambulances & Transport Units — Portable and battery-supported for resuscitation on the move.
Cardiac Care Units (CCU) — Continuous ECG and rhythm monitoring with defibrillation support.
Trauma & Code Teams — Quick guided operation for first responders.

Key Features :

Dual Operation Modes: Supports both Manual defibrillation and AED mode with automatic rhythm analysis and guidance via ResQNavi™ technology.
ResQNavi™ Intelligent Guidance: Automatically evaluates the operator’s proficiency and guides the rescue process step by step, even in manual mode.
Biphasic 360 J with QShock™: Advanced biphasic waveform with impedance compensation, and fast charge/discharge capability to deliver effective shocks quickly during critical events.
Patient Contact Indicators: Visual feedback on external paddles and on-screen display to ensure good paddle contact before shock delivery.
Integrated Monitoring: Continuous 3-lead ECG monitoring with arrhythmia detection, alarms and visual waveform display.
User-Friendly Interface: 7-inch TFT color LCD with clear visualization of vitals and guided demo operation for quick learning.
Reliable Auto-Test & Maintenance: Comprehensive automatic self-test functions with summaries and visual troubleshooting guidance reduce manual checks.
Durability: IP44 water/dust resistance and drop-tested design suitable for demanding environments.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Mindray uMED 20 is a compact, easy-to-use defibrillator/monitor designed to support rapid response during cardiac emergencies. It combines the professional functionality of a manual defibrillator with the simplicity and guidance of AED (Automated External Defibrillator) mode, making it suitable ...
